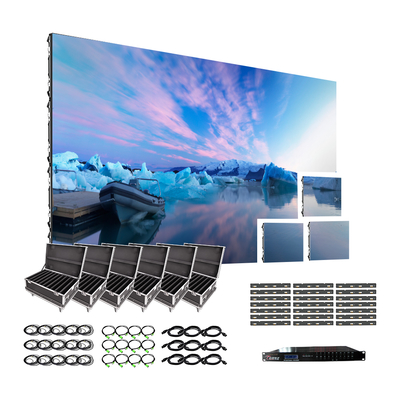

Full Color Concert Church Video Wall Event Stage P2.6 Indoor Rental LED Display Screen

Large Image : Full Color Concert Church Video Wall Event Stage P2.6 Indoor Rental LED Display Screen

Product Details:

Place of Origin:	China
Brand Name:	Chipshow
Model Number:	C-Shine-Plus P2.6 Indoor 500x500

Contact Now

Detailed Product Description

Warranty:	2 Years	Content Management System:	No
Remote Device Management:	No	Type:	LED
Application:	Indoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Media Available:	Photo, EDA/CAD Models, Datasheet	Color:	Full Color
Pixels:	2.6mm	Brightness:	800cd, 1,000cd/sqm
Usage:	Indoor Rental LED Display Screen	Refresh Rate:	3840Hz
LED Type:	SMD1515	Certificate:	CE ROHS FCC
Material:	Casting Aluminum	Keyword:	P2.6 Indoor Led Display
Panel Size:	500x500mm

Projects

Products Description

Technical Parameter

Specification(Indoor)	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1515	SMD2020	SMD2020
Working voltage	DC4.6V	DC4.6V	DC4.6V
Driving IC	ICND2153S	ICND2153S	ICND2153S
Driving way	1/32	1/28	1/16
Pixel Density/sqm	147456 dots	112896 dots	65536 dots
Module Size/mm	250 x 250 x 16mm	250 x 250 x 16mm	250 x 250 x 16mm
Cabinet Size	500 x 500 x 81mm	500 x 500 x 81mm	500 x 500 x 81mm
Cabinet Resolution	192x 192dots	168 x 168 dots	128 x 128 dots
Cabinet Weight	7kg	7kg	7kg
IP Rating	IP40	IP40	IP40
Brightness/sqm	1000 nits	1000 nits	1000 nits
View Angle/°	120 / 120(H/V)	120 / 120(H/V)	120 / 120(H/V)
Gray Scale/bit	≥14bit	≥14bit	≥14bit
Max. Power Consumption/W	500 W/sqm	500 W/sqm	500 W/sqm
Ave. Power Consumption/W	170 W/sqm	170 W/sqm	170 W/sqm
Refresh Frequency/Hz	3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-20"C~+50"C
Operating Life	10000Hours

Specification(Outdoor)	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1415	SMD1415	SMD1921
Working voltage	DC4.6V	DC4.6V	DC4.6V
Driving IC	ICND2153S	ICND2153S	ICND2153S
Driving way	1/24	1/21	1/16
Pixel Density/sqm	147456 dots	112896 dots	65536 dots
Module Size/mm	250 x 250 x 16mm	250 x 250 x 16mm	250 x 250 x 16mm
Cabinet Size	500 x 500 x 81mm	500 x 500 x 81mm	500 x 500 x 81mm
Cabinet Resolution	192x 192dots	168 x 168 dots	128 x 128 dots
Cabinet Weight	7.5kg	7.5kg	7.5kg
IP Rating	IP65	IP65	IP65
Brightness/sqm	4500 nits	4500 nits	4500 nits
View Angle/°	120 / 120(H/V)	120 / 120(H/V)	120 / 120(H/V)
Gray Scale/bit	≥14bit	≥14bit	≥14bit
Max. Power Consumption/W	520 W/sqm	520 W/sqm	520 W/sqm
Ave. Power Consumption/W	180 W/sqm	180 W/sqm	180 W/sqm
Refresh Frequency/Hz	7680 Hz	7680 Hz	7680 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-20"C~+50"C
Operating Life	10000Hours

Packing&Shipping

Buyer Feedback

Why Choose Us

Q:Who Are We?

A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:

1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.

3).Debug every modules.

4). 48-hour aging test for all modules before assembling.

5).Test every cabinet's function after assembling by engineers and machines.

6).72-hour aging test for whole screen before shipment.

7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
