2.6 Led Screen 1000x500 Led Wall 9x12 Led Wall Screen Indoor Internal Led Wall Led Screen Indoor

Large Image : 2.6 Led Screen 1000x500 Led Wall 9x12 Led Wall Screen Indoor Internal Led Wall Led Screen Indoor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Chipshow
Model Number:	AF Series

Contact Now

Detailed Product Description

Application:	Indoor, Outdoor	Warranty:	2 Years, 3 Years, 5 Years
Color:	Full Color	Supplier Type:	Original Manufacturer, ODM, Agency, Retailer, OEM, Other
Content Management System:	No	Remote Device Management:	Remote Content Management
Media Available:	Datasheet, Photo, EDA/CAD Models, Other	Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Function:	SDK	Pixels:	3.91mm
Specification:	Video Wall	Screen Type:	LED
Brightness:	1000cd	Aspect Ratio:	16:9, 4:3, 3:2, 1:1
Contrast Ratio:	5000:1	Color Depth:	16
Ip Rating:	Ip65, IP40	Resolution:	3840X2160, 1920x1080
View Angle（h/v）:	160°/160°	Panel Brand:	Chipshow
Operation System:	Windows	Display Function:	Graphics, ANIMATION, Text
Product Name:	Chipshow Rental Stage LED Display Screen	Cabinet Material:	Die-casting Aluminum
Refresh Rate (Hz):	3840~7680Hz	Brightness:	1000~4500 Nits
Warranty:	2~5 Years

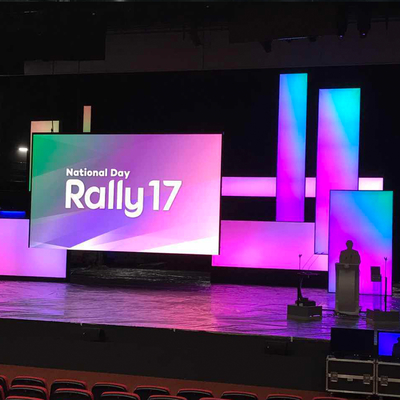

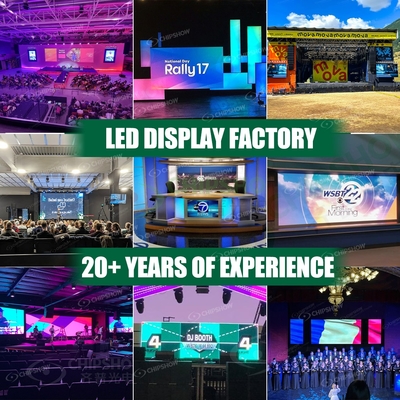

Projects

Products Description

Technical Parameter

Specification(Indoor)	1.95mm	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1515	SMD1515	SMD2121	SMD2121
Pixel Density/sqm	262144 dots	147456 dots	112896 dots	65536 dots
Module Size/mm	250x250 mm
Cabinet Size	500 x 500 x 84 mm
Cabinet Material	Die-cast aluminum
Cabinet Resolution	256 x 256 dots	192x192 dots	168x168 dots	128 x 128 dots
Cabinet Weight	6 kg
IP Rating	Front IP65/Rear IP40
Brightness/sqm	1000 nits
View Angle/°	160 / 160(H/V)
Gray Scale/bit	≥16bit
Driving Type	1/32 Scanning	1/32 Scanning	1/42 Scanning	1/32 Scanning
Max. Power Consumption/W	＜650W/㎡
Ave. Power Consumption/W	＜200W/㎡
Refresh Frequency/Hz	3840~7680 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-10℃~+40℃

Specification(Outdoor)	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1919	SMD1919	SMD1919
Pixel Density/sqm	147456 dots	112896 dots	65536 dots
Module Size/mm	250x250 mm
Cabinet Size	500 x 500 x 85 mm
Cabinet Material	Die-cast aluminum
Cabinet Resolution	192x192 dots	168x168 dots	128 x 128 dots
Cabinet Weight	6 kg
IP Rating	Front IP65/Rear IP65
Brightness/sqm	4500 nits
View Angle/°	160 / 160(H/V)
Gray Scale/bit	≥16bit
Driving Type	1/32 Scanning	1/42 Scanning	1/16 Scanning
Max. Power Consumption/W	＜800W/㎡
Ave. Power Consumption/W	＜300W/㎡
Refresh Frequency/Hz	3840~7680 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-10℃~+40℃

Chipshow with 24 years of experience, a professional team provides the most suitable solution for you. Send us an inquiry to get in touch!

Packing&Shipping

Buyer Feedback

Why Choose Us

Q:Who Are We?

A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:

1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.

3).Debug every modules.

4). 48-hour aging test for all modules before assembling.

5).Test every cabinet's function after assembling by engineers and machines.

6).72-hour aging test for whole screen before shipment.

7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
