3m X 2m Full Color Video Wall 5m X 3m Outdoor LED Screen 6ft X 8ft 3840Hz Rental LED Display

Large Image : 3m X 2m Full Color Video Wall 5m X 3m Outdoor LED Screen 6ft X 8ft 3840Hz Rental LED Display

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Chipshow
Model Number:	C-Shine-Plus

Contact Now

Detailed Product Description

Color Temperature:	2000K~10000K	Warranty:	2 Years, 3 Years, 5 Years
Operating Temperature:	-20℃~60℃	Resolution:	7680×4320 (8K), 3840×2160 (4K), 1920×1080 (1080p)
Viewing Angle:	160°	Contrast Ratio:	5000:1
Power Consumption:	≤520W/㎡	Color Depth:	16-Bit
Refresh Rate:	60Hz	Mounting Options:	Wall Mount, Ceiling Mount, Floor Stand, Custom Mount
Power Supply:	100-240V AC	Content Management System:	No
Remote Device Management:	No	Type:	LED
Application:	Outdoor, Indoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Media Available:	Datasheet, Photo, EDA/CAD Models, Other	Color:	Full Color
Pixel Density:	65536	Pixels:	P2.6 / P2.97 / P3.91
Brightness:	1000cd, 4500cd	Ready To Ship:	Stock In US Warehouse, EU Warehouse And China Factory.
Product Name:	Rental LED Screen / LED Wall / LED Display / Outdoor LED Display	Cabinet Material:	High Precision Casting Aluminum
Cabinet Size:	500mm*500mm / ≤ 7KG / Only 81mm Thickness	Refresh Rate (Hz):	7680Hz High Refresh Rate
Driving Method:	1/16 Scaning	After-sales Service Provided:	Online Video Technical Support
LEDs Protection Tech:	The Thrust Force Of LEDs Is 2.3kg, It Would Be More Safe And Durable	Module One-touch Rotary Unlock Design:	Quick Disassembly And Maintenance Within 5 Seconds
LED Display Solutions:	Events, Conferences, Stage, Church, Product Launches, And Real Estate

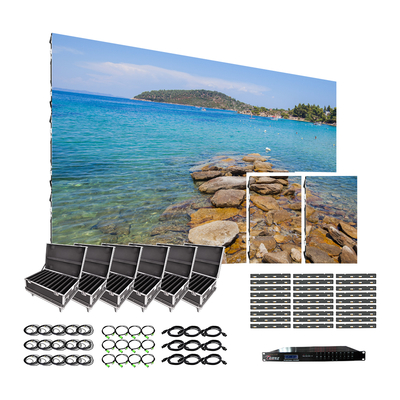

LED Video Wall System Package

What's included:

Led video panels；
Led video processor；

Rigging Bar；

Power cables；

Power interconnect cables；

Signal cables；

Signal interconnect cables；

Flight Case.

Projects

Products Description

Technical Parameter

Specification(Indoor)	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1515	SMD2020	SMD2020
Working voltage	DC4.6V	DC4.6V	DC4.6V
Driving IC	ICND2153S	ICND2153S	ICND2153S
Driving way	1/32	1/28	1/16
Pixel Density/sqm	147456 dots	112896 dots	65536 dots
Module Size/mm	250 x 250 x 16mm	250 x 250 x 16mm	250 x 250 x 16mm
Cabinet Size	500 x 500 x 81mm	500 x 500 x 81mm	500 x 500 x 81mm
Cabinet Resolution	192x 192dots	168 x 168 dots	128 x 128 dots
Cabinet Weight	7kg	7kg	7kg
IP Rating	IP40	IP40	IP40
Brightness/sqm	1000 nits	1000 nits	1000 nits
View Angle/°	120 / 120(H/V)	120 / 120(H/V)	120 / 120(H/V)
Gray Scale/bit	≥14bit	≥14bit	≥14bit
Max. Power Consumption/W	500 W/sqm	500 W/sqm	500 W/sqm
Ave. Power Consumption/W	170 W/sqm	170 W/sqm	170 W/sqm
Refresh Frequency/Hz	3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-20"C~+50"C
Operating Life	10000Hours

Specification(Outdoor)	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1415	SMD1415	SMD1921
Working voltage	DC4.6V	DC4.6V	DC4.6V
Driving IC	ICND2153S	ICND2153S	ICND2153S
Driving way	1/24	1/21	1/16
Pixel Density/sqm	147456 dots	112896 dots	65536 dots
Module Size/mm	250 x 250 x 16mm	250 x 250 x 16mm	250 x 250 x 16mm
Cabinet Size	500 x 500 x 81mm	500 x 500 x 81mm	500 x 500 x 81mm
Cabinet Resolution	192x 192dots	168 x 168 dots	128 x 128 dots
Cabinet Weight	7.5kg	7.5kg	7.5kg
IP Rating	IP65	IP65	IP65
Brightness/sqm	4500 nits	4500 nits	4500 nits
View Angle/°	120 / 120(H/V)	120 / 120(H/V)	120 / 120(H/V)
Gray Scale/bit	≥14bit	≥14bit	≥14bit
Max. Power Consumption/W	520 W/sqm	520 W/sqm	520 W/sqm
Ave. Power Consumption/W	180 W/sqm	180 W/sqm	180 W/sqm
Refresh Frequency/Hz	7680 Hz	7680 Hz	7680 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-20"C~+50"C
Operating Life	10000Hours

Packing&Shipping

Buyer Feedback

Why Choose Us

Q:Who Are We?

A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:

1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.

3).Debug every modules.

4). 48-hour aging test for all modules before assembling.

5).Test every cabinet's function after assembling by engineers and machines.

6).72-hour aging test for whole screen before shipment.

7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
