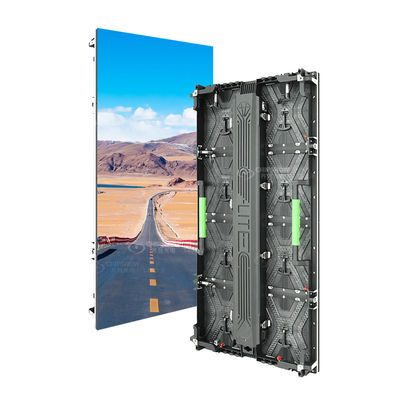

Turnkey Solution Led Video Wall P2 P2.6 P2.9 P3.91 P4.8 Led Display Indoor Outdoor Event Led Panel Stage Led Screen

Large Image : Turnkey Solution Led Video Wall P2 P2.6 P2.9 P3.91 P4.8 Led Display Indoor Outdoor Event Led Panel Stage Led Screen

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Chipshow
Model Number:	C-Lite-Plus

Contact Now

Detailed Product Description

Warranty:	2 Years, 3 Years, 5 Years	Content Management System:	No
Remote Device Management:	No	Type:	LED
Application:	Outdoor, Rental Stage Concert	Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Media Available:	Datasheet, Photo, EDA/CAD Models, Other	Color:	Full Color
Pixels:	3.91mm	Brightness:	4500cd, 4500cd/sqm
Application:	Stage Rental	Warranty:	2years
Refresh Rate:	3840Hz	Material:	Diecast Aluminum Alooy

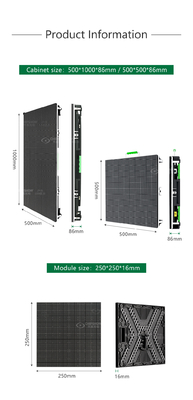

Cabinet Size:	500x1000mm	Package:	Flight Case
Installation:	Hanging Installation	Cabinet Weight:	13kg

Projects

Product Paramenters

ItemI	Specification Parameter
Pixel Pitch、Resolution rate、size	3.91mm、6464、250250*16mm
Pixel color、 Pixel LED	1R1G1B、 SMD1921
Working voltage、Module Power	DC4.6V、≤41W
Driving IC、Driving way	ICN2153、1/16
HUB	HUB(AXS-500X1000-PRO)-V1.0
Material、Cabinet Weight(kg/Cabinet)	Die-cast Aluminum、13kg /cabinet
Resolution rate、size、Module quantity	128256Dots、500100089mm、24
Density	65536 Dots/㎡
White balance 、Color temperature	4500CD/㎡、6000K-8000K
view angel、Non-Flatness、Module interval	H/V：120°/120°、＜0.2mm、＜0.2mm
Maximal power/㎡、Average power/㎡	≤650W/㎡、≤220W/㎡
Frame frequency、Refresh frequency、Gray grade	60Hz、3840Hz 、≥13bit
Control system、System supports	CHIPSHOW，Windows XP，WIN 7
Working temperature、Protection grade	-20~50℃、Front/Back：IP65

Features

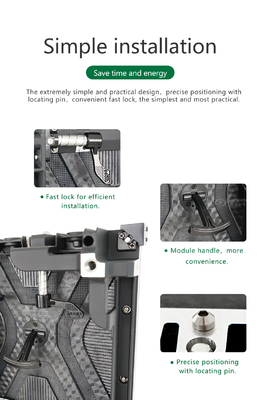

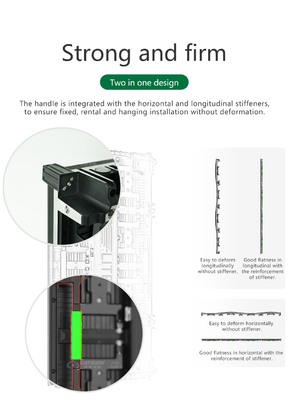

1. Flat: DC12 high-strength die-cast aluminum cabinet, can be frequently assembled and disassembled without deformation, good flatness; 2. Practical: The extremely simple and practical design, firm handle, convenient fast lock, the simplest and most practical;

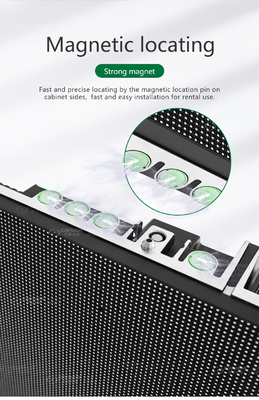

3. Magnetic locating：Fast and precise locating by the magnetic location pin on cabinet sides, fast and easy installation for rental use; 4. Economical: Low cost, stable and reliable, and super cost-effective; 5. Global hot sale over 50,000 square meters. Ready stock, fast delivery.

Buyer Feedback

Why Choose Us

Package and Delivery

FAQ

Q:Who Are We?

A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:

1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.

3).Debug every modules.

4). 48-hour aging test for all modules before assembling.

5).Test every cabinet's function after assembling by engineers and machines.

6).72-hour aging test for whole screen before shipment.

7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
