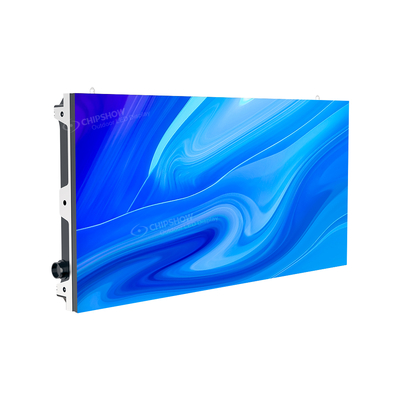

P5 Fully Enclosed Module Full Color Billboard LED TV Screen LED Screen Outdoor for Wall Advertisements

Large Image : P5 Fully Enclosed Module Full Color Billboard LED TV Screen LED Screen Outdoor for Wall Advertisements

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Chipshow
Model Number:	C-Easy-Plus5U0804S19-C128X64-CA640X320

Contact Now

Detailed Product Description

Application:	Outdoor	Warranty:	2 Years, 3 Years, 5 Years
Color:	Full Color	Supplier Type:	Original Manufacturer, ODM, Agency, Retailer, Other, OEM
Remote Device Management:	No	Media Available:	Datasheet, Photo, EDA/CAD Models, Other
Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment	Function:	SDK
Pixels:	5mm	Specification:	Video Wall
Screen Type:	LED	Brightness:	7000cd
Aspect Ratio:	16:9, 4:3, 3:2, 21:9, Other, 1:1	Pixel Pitch:	5mm
Pixel Color:	1R1G1B	Pixel LED:	SMD1921
Working Voltage:	DC4.6V	Resolution Rate:	128*64 Dots
Material:	Die-cast Aluminum	Cabinet Weight(kg/Cabinet):	6kg/Cabinet
White Balance:	7000 CD/㎡	Average Power/㎡:	≤195W/㎡
Refresh Frequency:	1920Hz-3840Hz

FEATURES

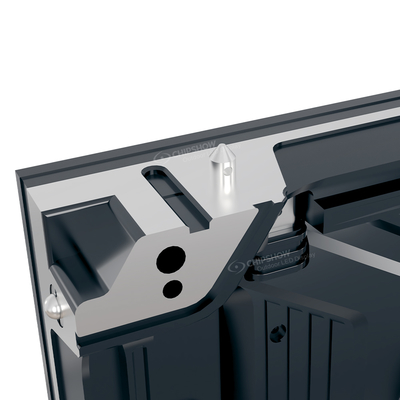

1. One-key fast disassemble, the module has one-key fast disassemble lock, can be quickly assembled, disassembled and maintained from front and rear, saving time and effort;

2. Ultra-thin: light and thin module; weight ≤ 6kg/pcs (including bracket); Saving storage and transportation costs;

3. Low structural cost: module+ fixed bracket=large screen, saving steel structure costs;

4. Can be installed against the wall; modules, power supplies, and system cards can be maintained from the front, and the wall installation is more beautiful;

5. Beautiful cables: 2-in-1 signal and power cable, convenient and beautiful wiring;

6. High protection: fully enclosed module, front and rear IP65, high stability;

7. Low noise: no fan design, to ensure that the noise is less than 25 decibels;

8. 640*320mm module, users can quickly assemble signs of various sizes; such as signs of monuments, hangers, information and mobile Led signs.

Products Description

→If You Have Any Product consultation,Please Email Us Or Call Us,We will Reply You ASAP!!!

Buyer Feedback

Technical Parameter

Model	C-EASY-PLUS
LED configuration	SMD1921
Pixel pitch	5mm

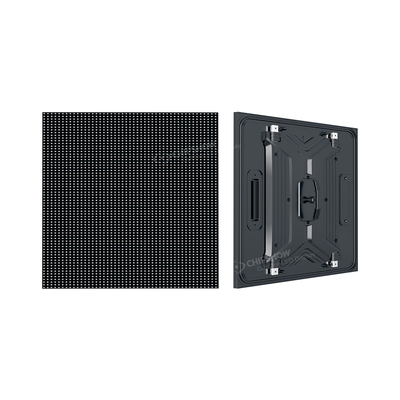

Module size	320*320mm

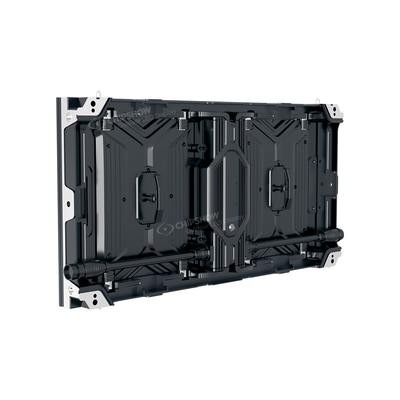

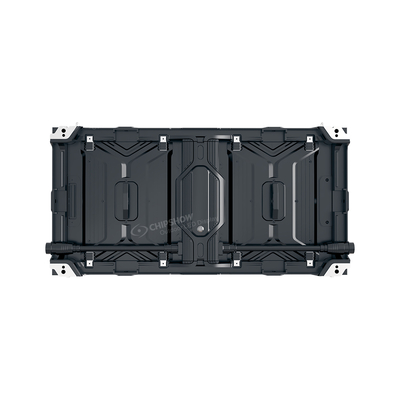

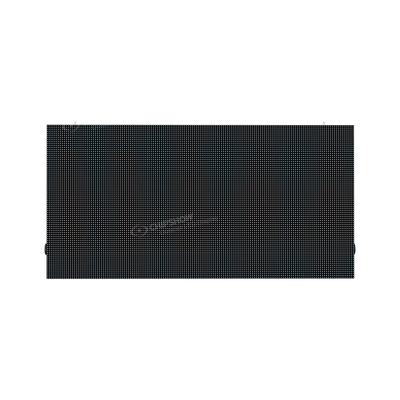

Cabinet size	640*320mm
Cabinet material	Die Casting Aluminum
Weight	6kg/Cabinet
Viewing angle	H/V：120°/120°
Working voltage	DC4.6V
Average power	≤195W/㎡
Max consumption	≤650W/㎡
Refresh rate	1920Hz-3840Hz
White balance brightness	7000 CD/㎡
Drive mode	1/8 scanning
Life	100000
Waterproof	IP65
Maintenance type	Front / rear

Company Introduction

Packing&Shipping

FAQ

Q:Who Are We?

A: Chipshow has 20,000sqm high-tech automated workshop, 200 employees,25 research engineers,20 after-sale technicians,5000sqm productivity each month.

Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:

1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.

3).Debug every modules.

4). 48-hour aging test for all modules before assembling.

5).Test every cabinet's function after assembling by engineers and machines.

6).72-hour aging test for whole screen before shipment.

7). All details final inspection again before package.

Q:What Can You Buy From US?
A: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.

Q: Why Should You Buy From US Not From Other Suppliers?
A: After the 20 years' development, Shenzhen Chip Optech Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.

Q:What Services Can We Provide?
A: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen。
